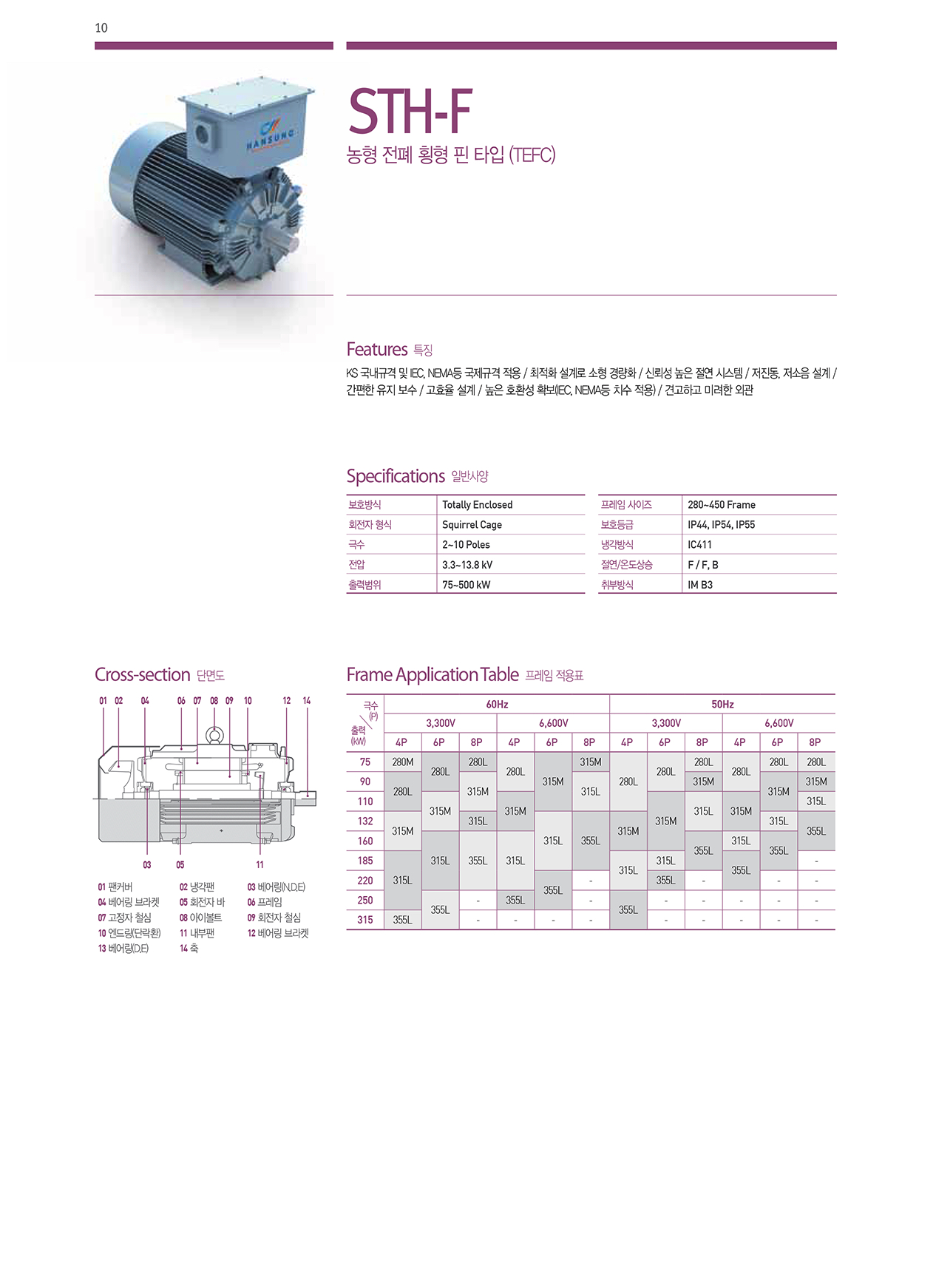

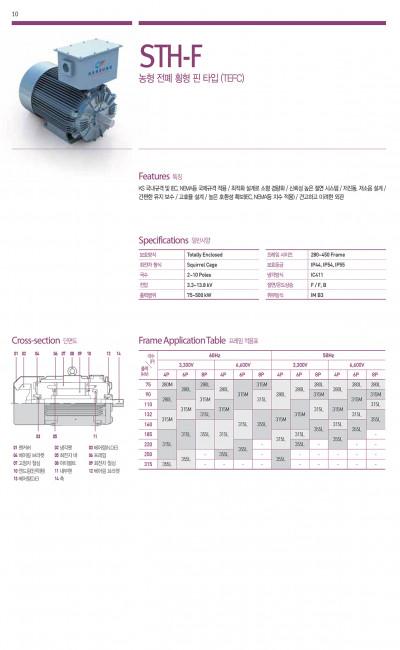

Protection method | Totally Enclosed | Frame size | 280~450 Frame |
---|---|---|---|
Rotor type | Squirrel Cage | Degree of protection | IP44, IP54, IP55 |
Number of poles | 2~10 Poles | Cooling system | IC411 |
Voltage | 3.3~13.8 kV | Isolation / Temperature Rise | F/F,B |
Output range | 75~500 kW | Mounting method | IM B3 |
