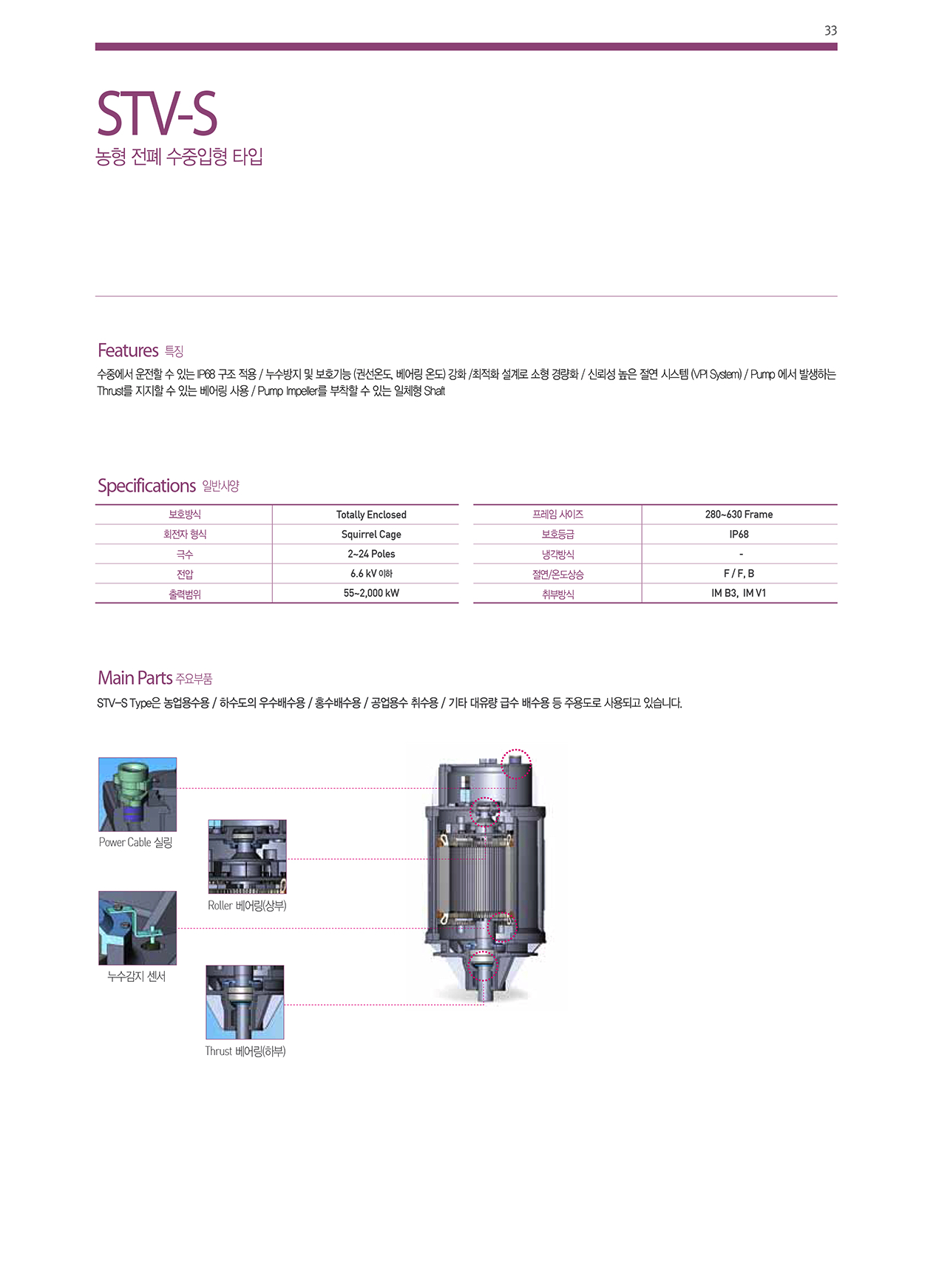

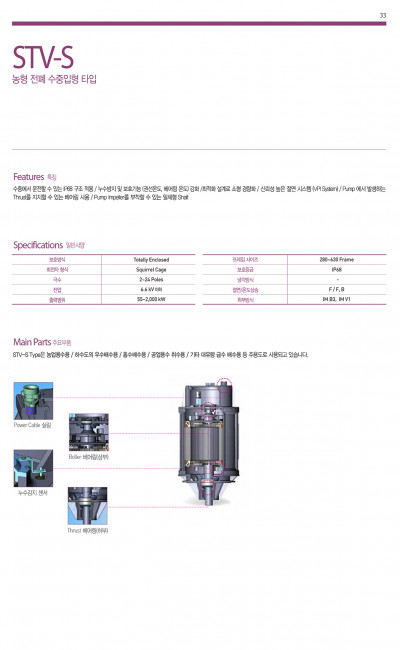

STV-S | SquirrelCageTotallyEnclosedSubmersibleVerticalType

High Voltage Special Motors
STV-S
SquirrelCageTotallyEnclosedSubmersibleVerticalType

Features

Application of IP68 structure that can operate in water / Drain prevention and protection function (Winding temperature, Bearing temperature) Strengthened / Optimized design makes it possible to realize compact / lightweight / reliable insulation system (VPI System)Use of bearings to support thrust / Integral shaft to attach pump impeller

Specifications

Protection method	Totally Enclosed	Frame size	280~630 Frame
Rotor type	Squirrel Cage	Degree of protection	IP68
Number of poles	2~24 Poles	Cooling system	-
Voltage	6.6kV 이하	Isolation / Temperature Rise	F/F,B
Output range	55~2,000 kW	Mounting method	IMB3, IMV1
